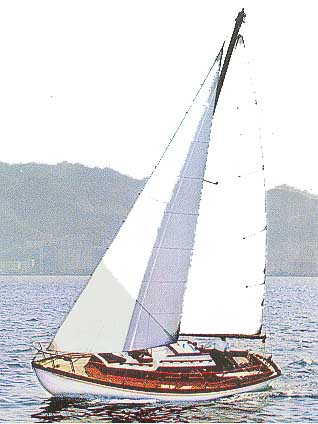

Cheoy Lee Offshore 27 sloop

Cheoy Lee Offshore 27 sloop

This is the Offshore 27 Sales Brochure provided to me by Jonathan Cannon, Sales Manager, Cheoy Lee Shipyards Ltd., Hong Kong. It consists of two brochures with different specs: 1) Offshore-27 Auxiliary Sailing Sloop, and 2) Newell Cadet “Off Shore” 27. The differences are listed below where they occur in the brochures, and in the order of spec 1 or spec 2 above.

outline drawing of a CL 27

outline drawing of a CL 27

LOA: 26′ 10″
LWL:  19′ 6″
Beam: 7′ 8.5″
Draft: 4′ 4″
Working sail area: 384 sq. ft.
Displacement: 6,900 lbs.
Internal ballast (keel weight): 2,700 lbs.
Water: 26 gal.
Fuel: 10 gal.
Original Wilcox-Crittenden ‘Imperial 51’ head replaced with Raritan PHII manual head
30-ft. Sitka Spruce mast

Upgrades to this boat

Universal M-18, a 34.8 cu inch, 2-cylinder, 14 hp @ 3,200 rpm diesel engine; built in yrs. 1983 – 1988 (2,400 sold); 255 lbs.; based on the Kubota Z-600 block; SN 420778; hours on hourmeter before switching to new instruments: 408.8 hours
Universal M-18 Owner’s Manual
Universal M-18 Spare Parts List

Edson pedestal-mounted engine controls and brake, spacer and offset guard
Furuno radar and GPS
Ritchie pedestal compass
Racor 120A and 120B Series fuel filter and water separator
ISSPRO engine gauges
Standard Horizon depth sounder and knot meter
VHF radio
Pioneer stereo CD player
DC and AC electrical panels
New battery switch
Guest 10-amp battery charger
11-gal. holding tank
